Standards
| Model | PL4KGV-30KC |

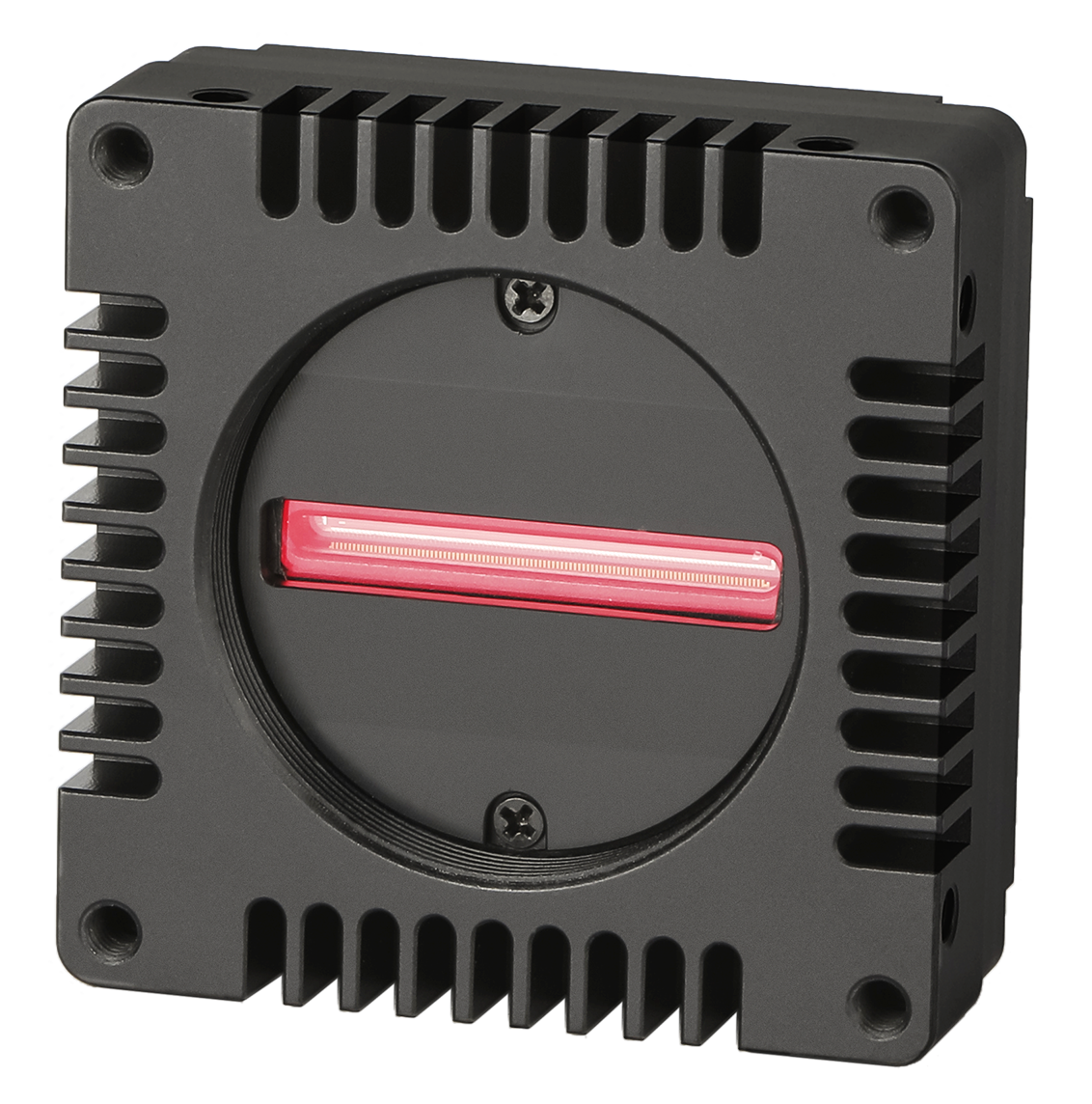

| Sensor | Global shutter CMOS |
| Image Mode | Color |
| Optical Size | 28.67 mm |
| Resolution | 4096 * 2 |
| Pixel Size | 7μm * 7μm |
| Max Line Rate | 10kHz (30kHz with SAccel™) |
| Bit Depth | 8/10/12 bit |
| Dynamic Range | ≥58.9dB |
| Data Rate | 369 MB/s |
| Trigger Mode | Free-Run / Line Trigger Control / Frame Trigger Control |
| Exposure Control | Pulse Width Control / Program |
| Exposure Time | 6μs-10s(Step:0.1μs) |
| Analog Gain | 1/2/3/4x |
| Digital Gain | 0.004-8.00x |

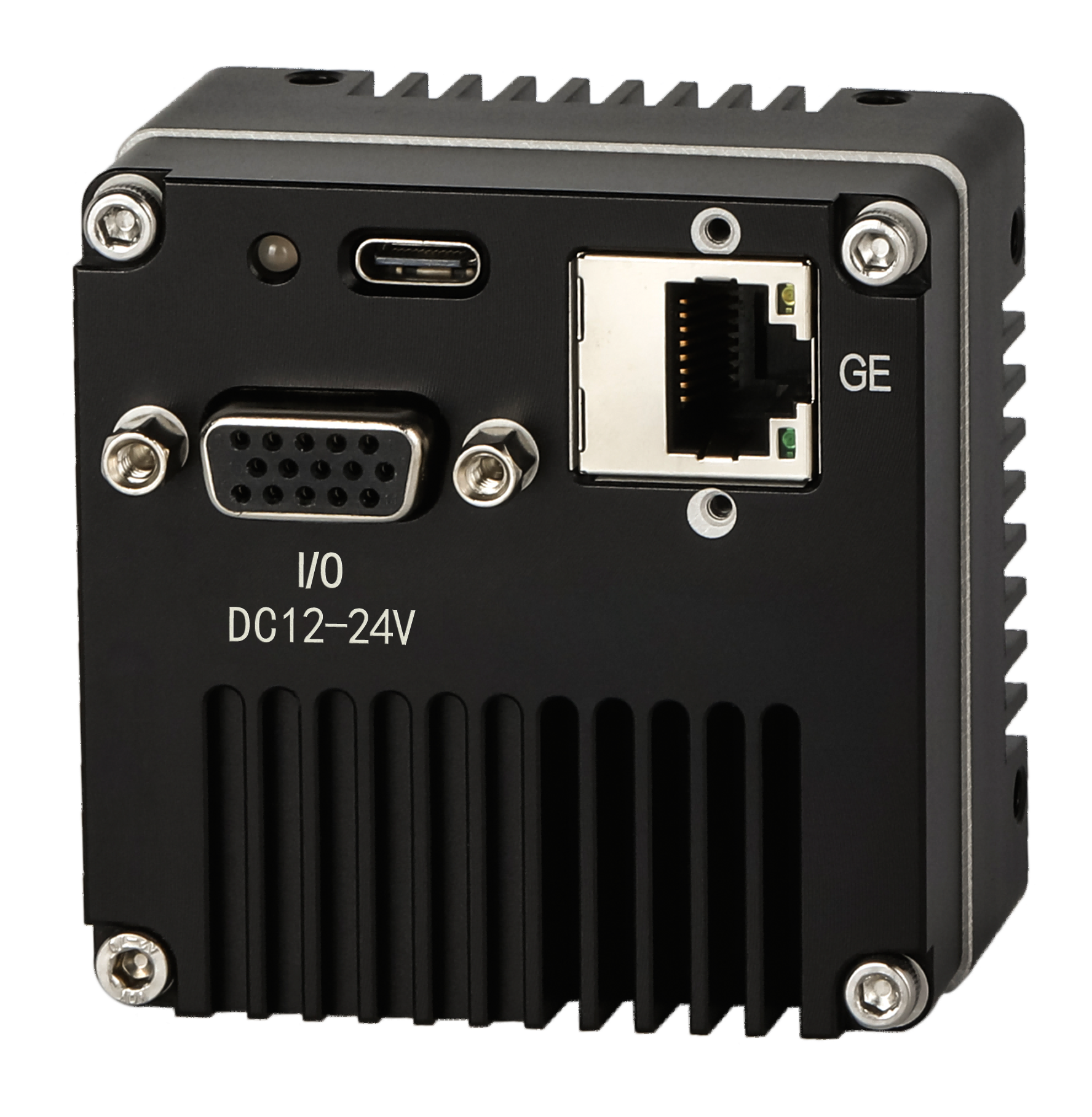

| Data Interface | GigE Vision |
| Lens Mount | M42 * 1 |
| Power Connector | HD15(Female) |
| Power Supply | DC12-24V(±10%) 1A |
| Power Dissipation | 5.2 W |
| Dimensions | 62.0mm(W) x 62.0mm(H) x 37.4mm(D) |
| Operating Temperature | 0-65℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 170.7g |
