Standards

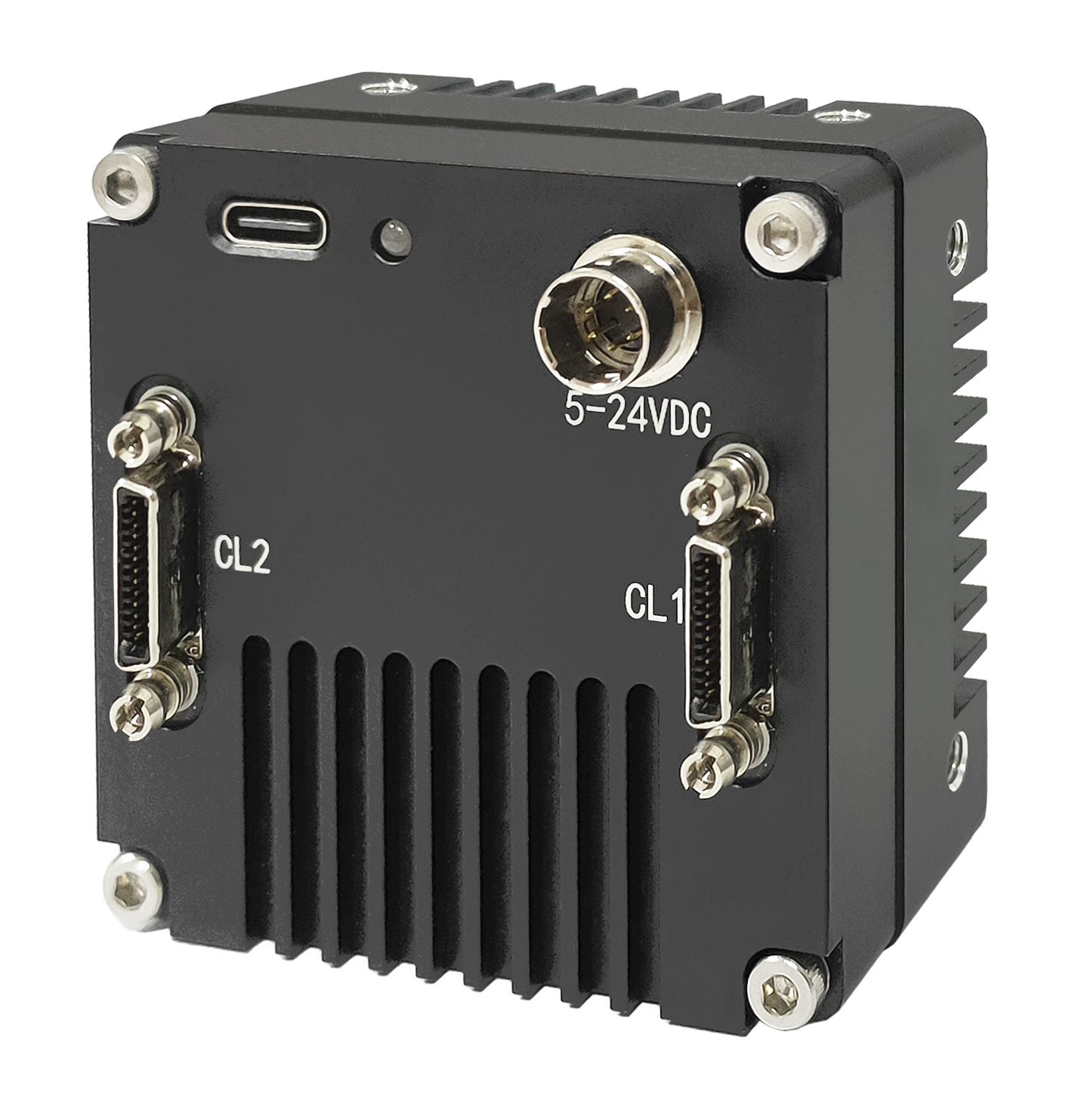

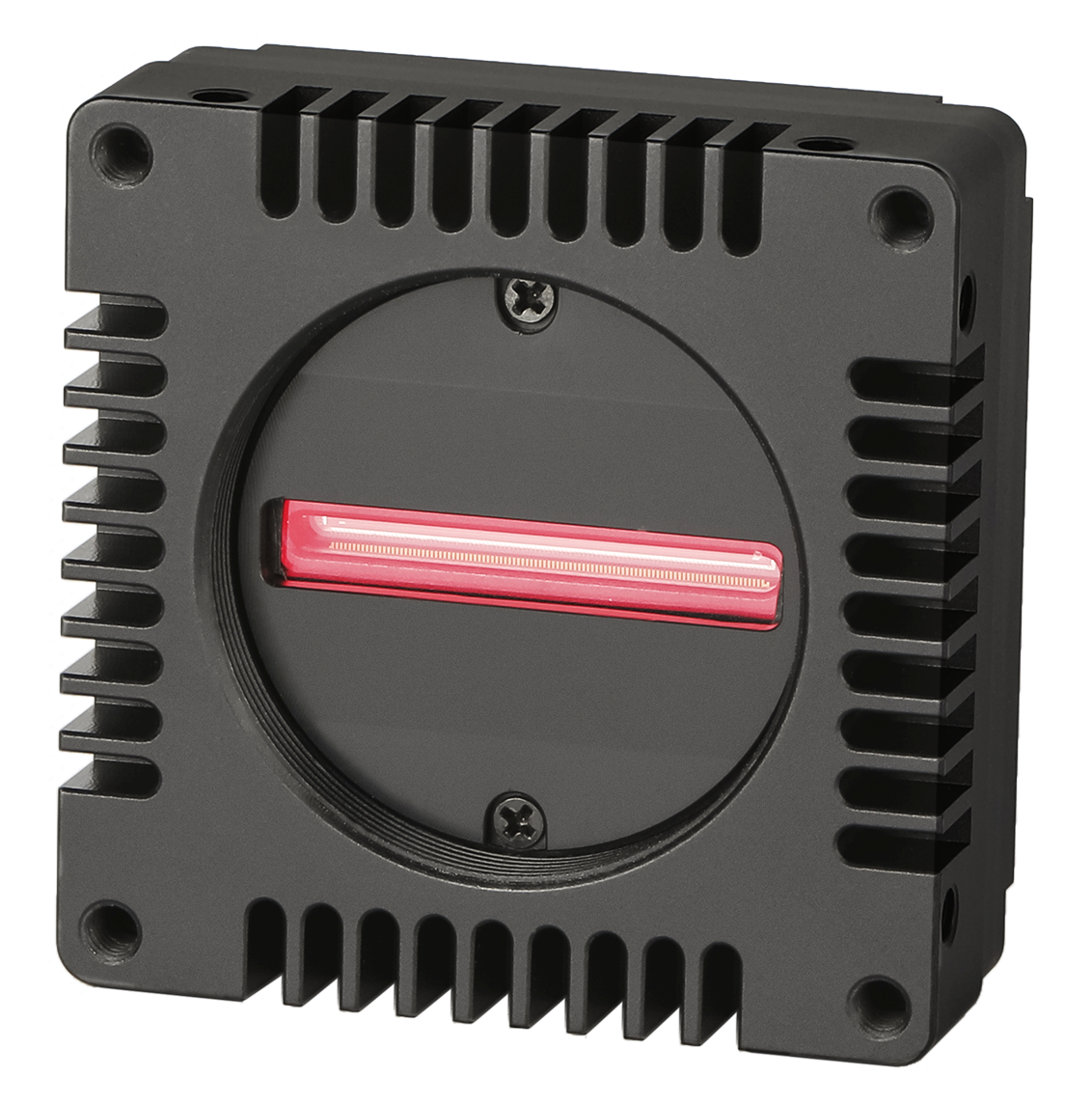

| Model | PL4KCL-68KC |
| Sensor | Global Shutter CMOS |
| Image Mode | Color |
| Optical Size | 28.67 mm |
| Resolution | 4096 * 2 |
| Pixel Size | 7μm * 7μm |
| Max Line Rate | 68.0kHz@10Tap,61.3kHz@3/8Tap,41.2kHz@2Tap,20.6kHz@1Tap |
| Bit Depth | 8/10/12 bit |
| Dynamic Range | ≥63.5 dB |
| Data Rate | 835 MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 2μs-10s(Step:0.1μs) |
| Analog Gain | 1/2/3/4x |
| Digital Gain | 0.01-8.00x |
| Data Interface | Camera Link |
| Lens Mount | M42 * 1 |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC5-24V(±10%) 1.0A |
| Power Dissipation | 5.2 W |
| Dimensions | 62.0mm(W) x 62.0mm(H) x 37.0mm(D) |
| Operating Temperature | 0-65℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 134.4g |
