Standards

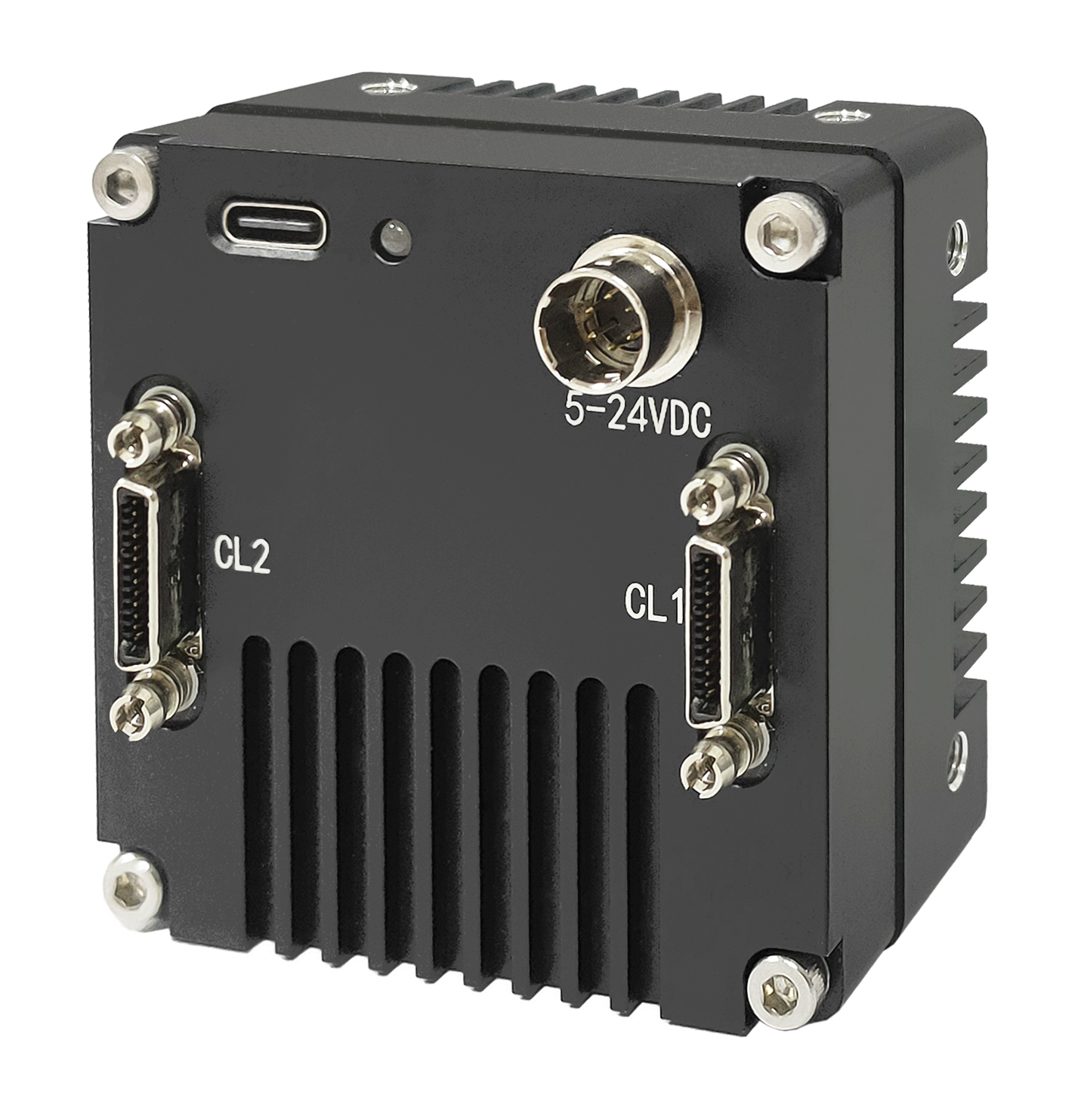

| Model | PL4KCL-200KT |
| Sensor | Global shutter CMOS |
| Image Mode | Mono |
| Optical Size | 28.67 mm |
| Resolution | 4096 * 2 |
| Pixel Size | 7μm * 7μm |
| Max Line Rate | 200kHz@10Tap，162.4kHz@8Tap，81.5kHz@4Tap，41.1kHz@2Tap |
| Bit Depth | 8/10/12 bit |
| Dynamic Range | ≥66.2dB |
| Data Rate | 819 MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Exposure Control | Pulse Width Control / Program |
| Exposure Time | 2μs-10s(Step:0.1μs) |
| Analog Gain | 1/2/5/10x |
| Digital Gain | 0.01-8.00x |
| Data Interface | Camera Link |
| Lens Mount | M42 * 1 |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC5-24V(±10%) 1.0A |
| Power Dissipation | 5.3 W |
| Dimensions | 62.0mm(W) x 62.0mm(H) x 37.0mm(D) |
| Operating Temperature | 0-65℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 134.4g |
