Standards

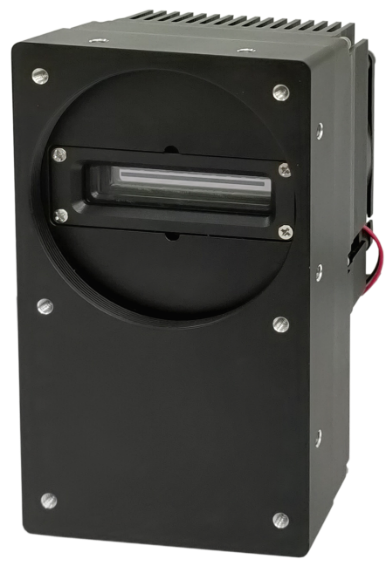

| Model | PH8KCXP-250KT |
| Sensor | Back Illuminated CCD |
| Image Mode | Mono |
| Optical Size | 40.96 mm |
| Resolution | 8192 * 256 |
| Pixel Size | 5μm * 5μm |
| Max Line Rate | 280.9kHz@8bit，232.0kHz@10bit，194.6kHz@12bit |
| Bit Depth | 8/10/12 bit |
| Dynamic Range | ≥63.2dB |
| Data Rate | 2391MB/s |
| Trigger Mode | Free Run / External Trigger |
| Exposure Control | Timed / Line Rate Control |
| Exposure Time | 3.56μs-1s(Step:0.01μs) |
| Analog Gain | x1/x2/x4/x8 |
| Digital Gain | 0.01~7.998 |
| Data Interface | CoaXPress |
| Lens Mount | M72* 0.75 |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 1.5A |
| Power Dissipation | 9.8W |
| Dimensions | 79.6mm x 139.5mm x 47mm |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
