Standards

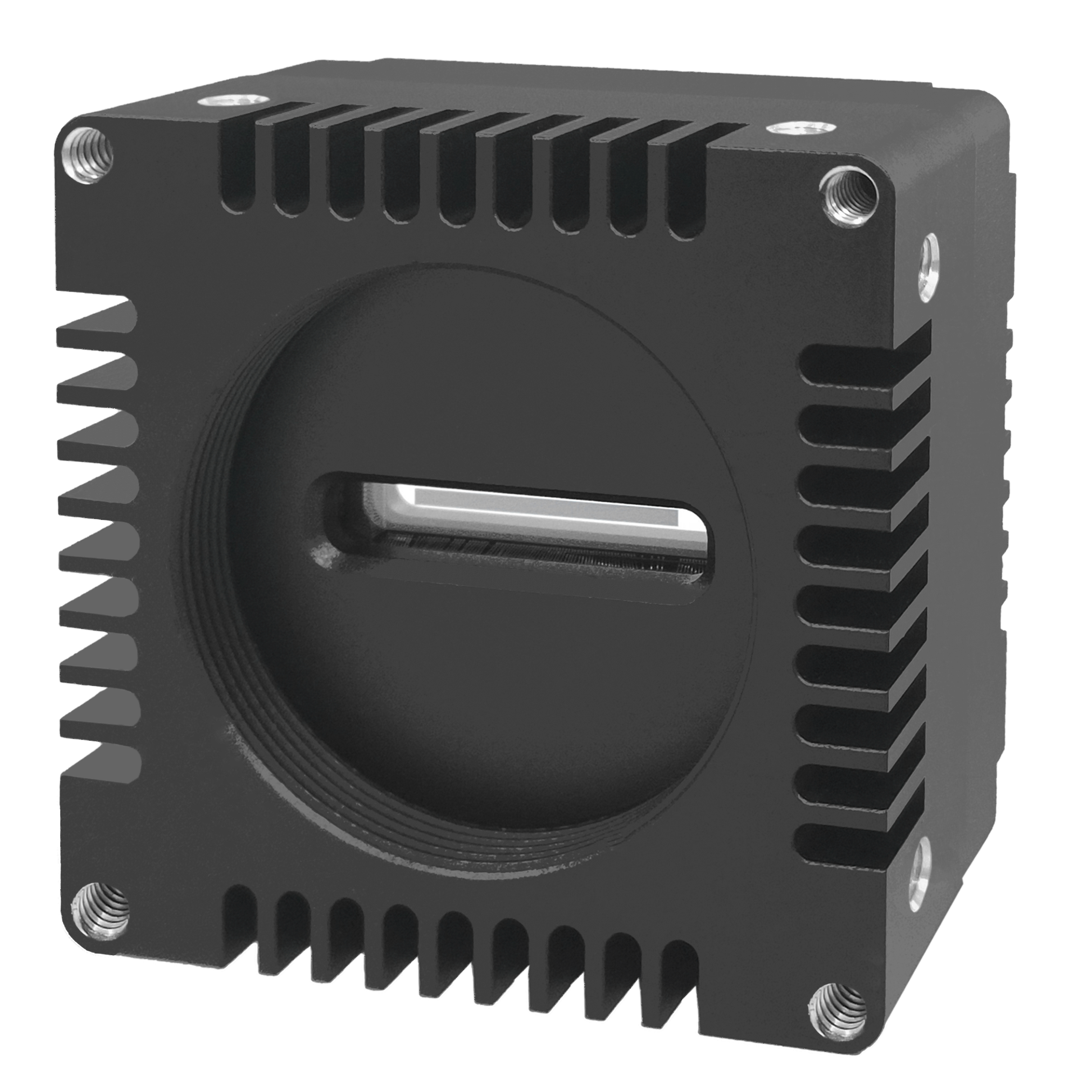

| Model | PH4KCXP-250KU256 |
| Image Sensor | Back Illuminated CCD |
| Image Mode | Mono |
| Optical Size | 20.48 mm |
| Resolution | 4096 * 256 |
| Pixel Size | 5μm * 5μm |
| Max Line Rate | 250kHz@8bit，237kHz@10bit，198kHz@12bit |
| Bit Depth | 8/10/12bit |
| Dynamic Range | ≥63.5 dB |
| Data Rate | 1216 MB/s |
| Trigger Mode | Free-Run / External Pulse |
| Exposure Control | Controlled by line rate |
| Exposure Time | 4μs-1s(Step:0.01μs) |
| Analog Gain | 1/2/4/8x |
| Digital Gain | 0.004-7.998x |
| Data Interface | CoaXPress |
| Lens Mount | M42 * 1 |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 1.0A |
| Power Dissipation | 6.0 W |
| Dimensions | 60.0mm(W) x 60.0mm(H) x 39.0mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
