Standards

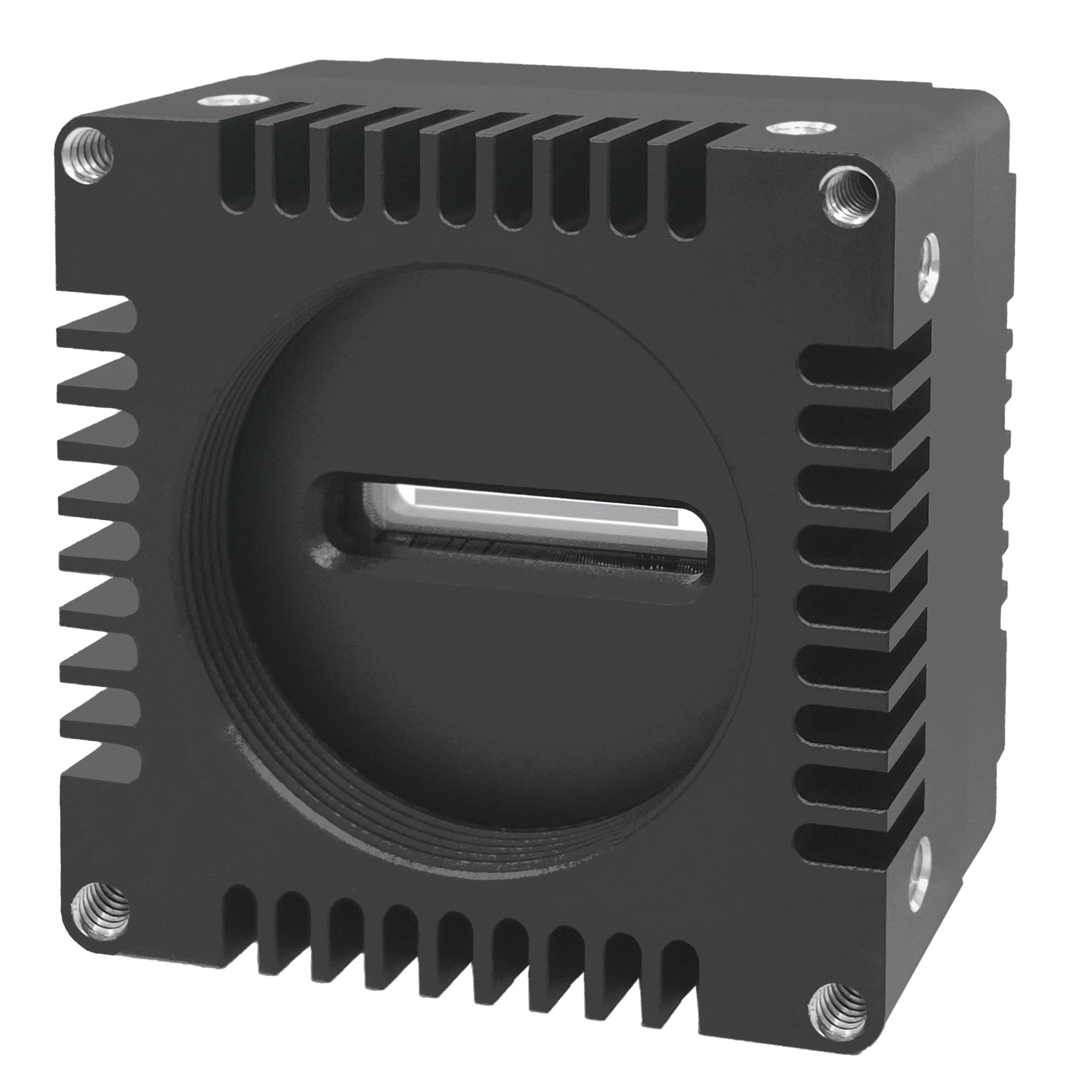

| Model | PH4KCL-200KU |
| Sensor | Back Illuminated CCD |
| Image Mode | Mono |
| Optical Size | 20.48 mm |
| Resolution | 4096 * 256 |
| Pixel Size | 5μm * 5μm |
| Max Line Rate | 200.0kHz@10Tap, 161.3kHz@8Tap, 81.3kHz@4Tap, 41.2kHz@2Tap |
| Bit Depth | 8/10/12 bit |
| Dynamic Range | ≥63.5 dB |
| Data Rate | 819MB/s |
| Trigger Mode | Free Run / External Trigger |
| Exposure Control | Timed / Line Rate Control |
| Exposure Time | 5μs-10s(Step:0.01μs) |
| Analog Gain | 1/2/4/8x |
| Digital Gain | 0.01~7.998X |

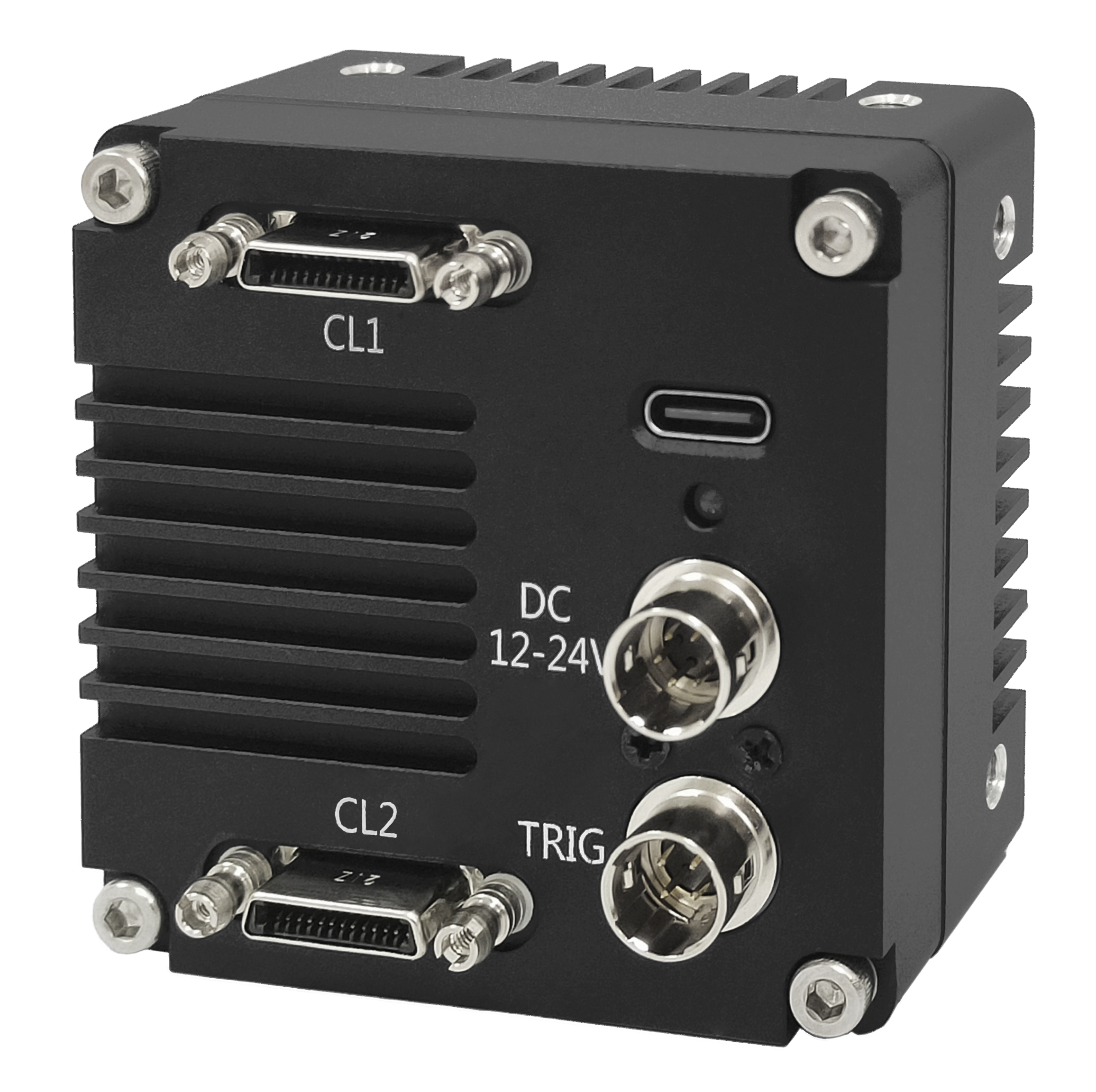

| Data Interface | Camera Link |
| Lens Mount | M42 * 1 |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC 12~24V (±10%) 1.0A |
| Power Dissipation | 4.9W |
| Dimensions | 60.0mm(W) x 60.0mm(H) x 35.0mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 190.9g |
