Standards

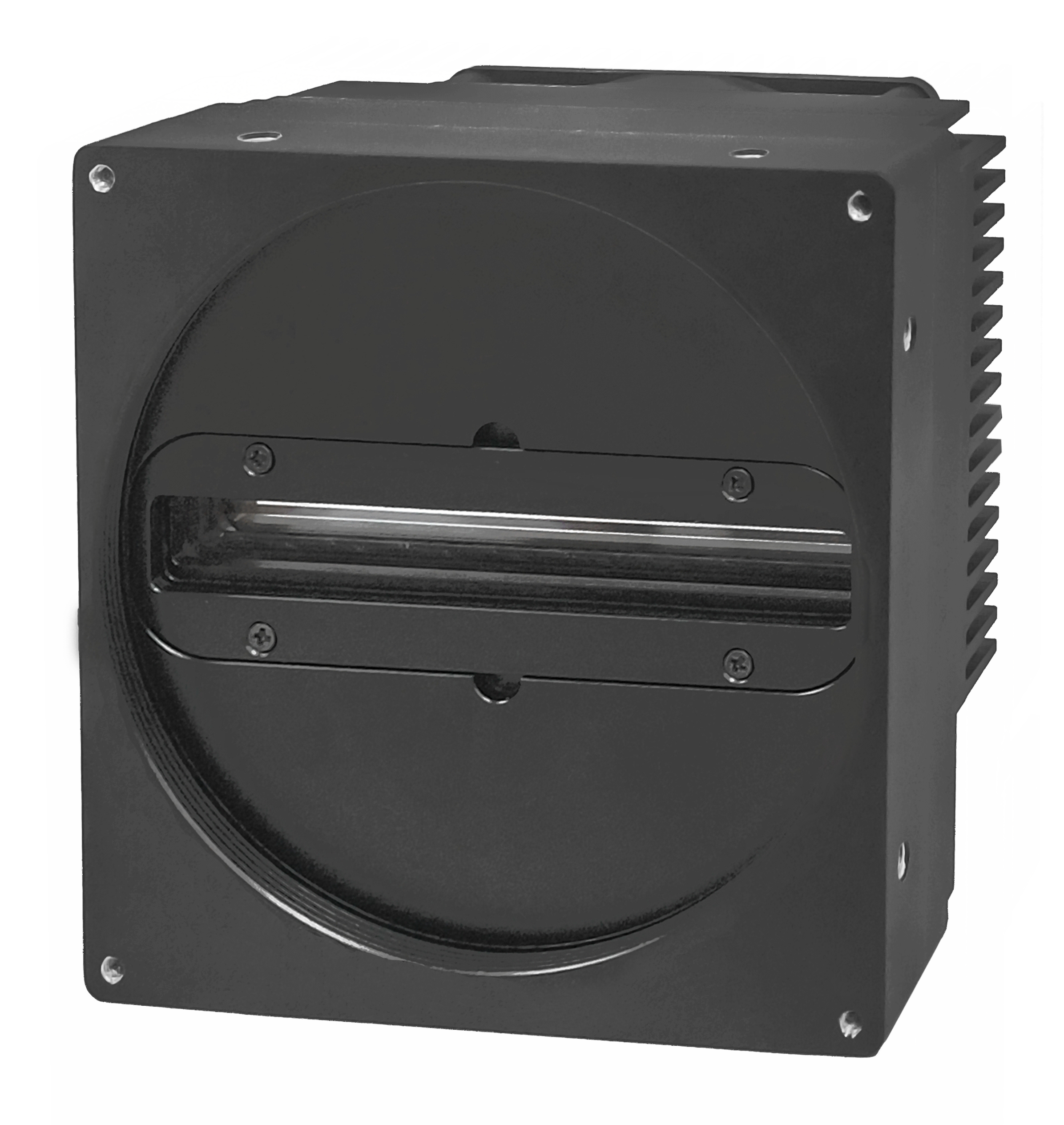

| Model | PH16KCXP12-250KT |
| Sensor | Back Illuminated CCD |
| Image Mode | Mono |
| Optical Size | 81.92 mm |
| Resolution | 16384 * 256 |
| Pixel Size | 5μm * 5μm |
| Max Line Rate | 280.9kHz@8bit，234.7kHz@10bit，198.0kHz@12bit |
| Bit Depth | 8/10/12 bit |
| Dynamic Range | ≥53.7 dB |
| Data Rate | 4866MB/s |
| Trigger Mode | Free Run / External Trigger |
| Exposure Control | Timed / Line Rate Control |
| Exposure Time | Follow Line Rate |
| Analog Gain | 1/2/4/8x |
| Digital Gain | 0.001x-7.998x |
| Data Interface | CoaXPress12 |
| Lens Mount | M95* 1 |

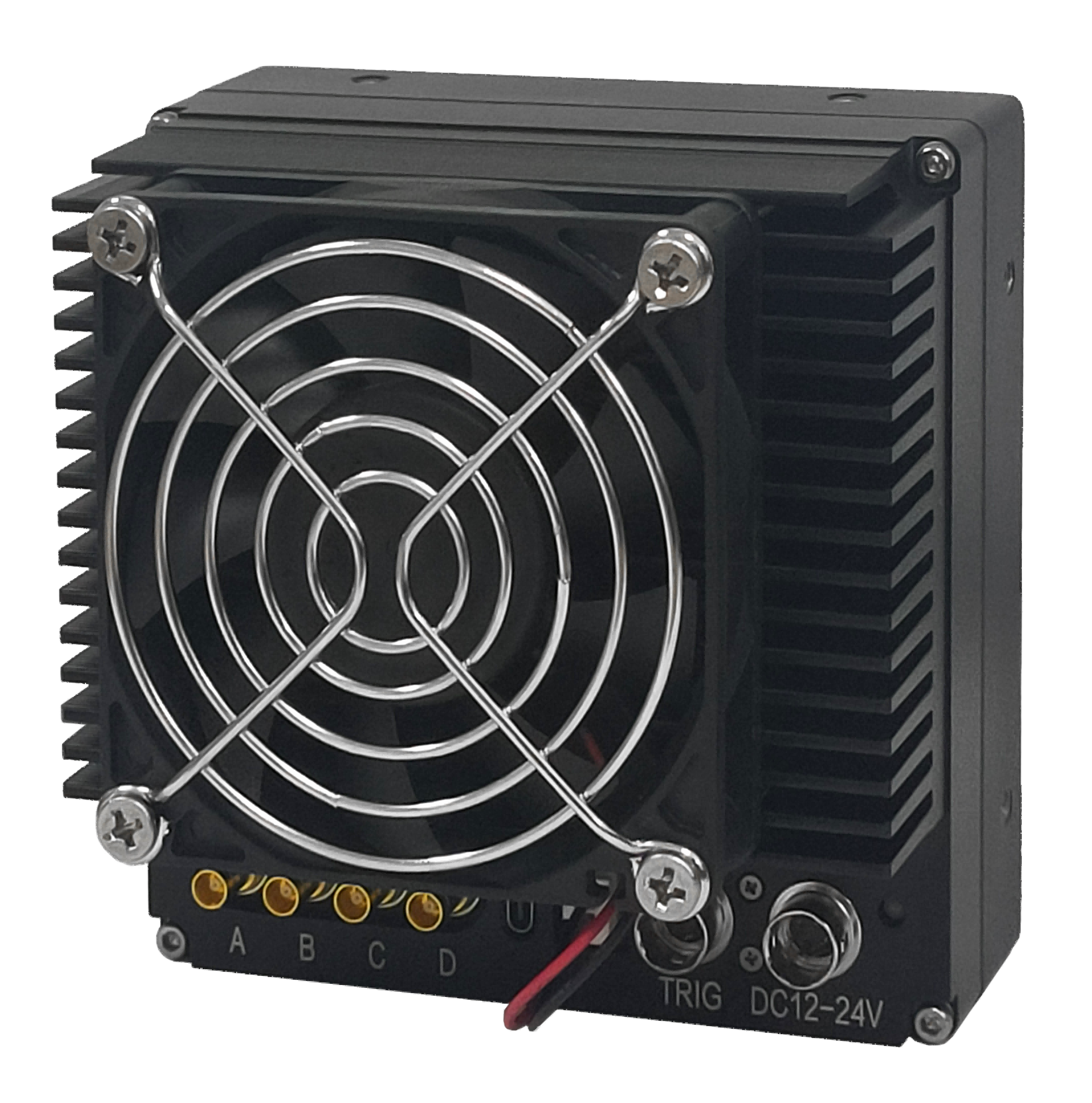

| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 2.0A |
| Power Dissipation | 17.8W |
| Dimensions | 99.0mm(W) x 99.0mm(H) x 74.2mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 729.7g |
