Standards
| Model | PA8KGV-45KM |

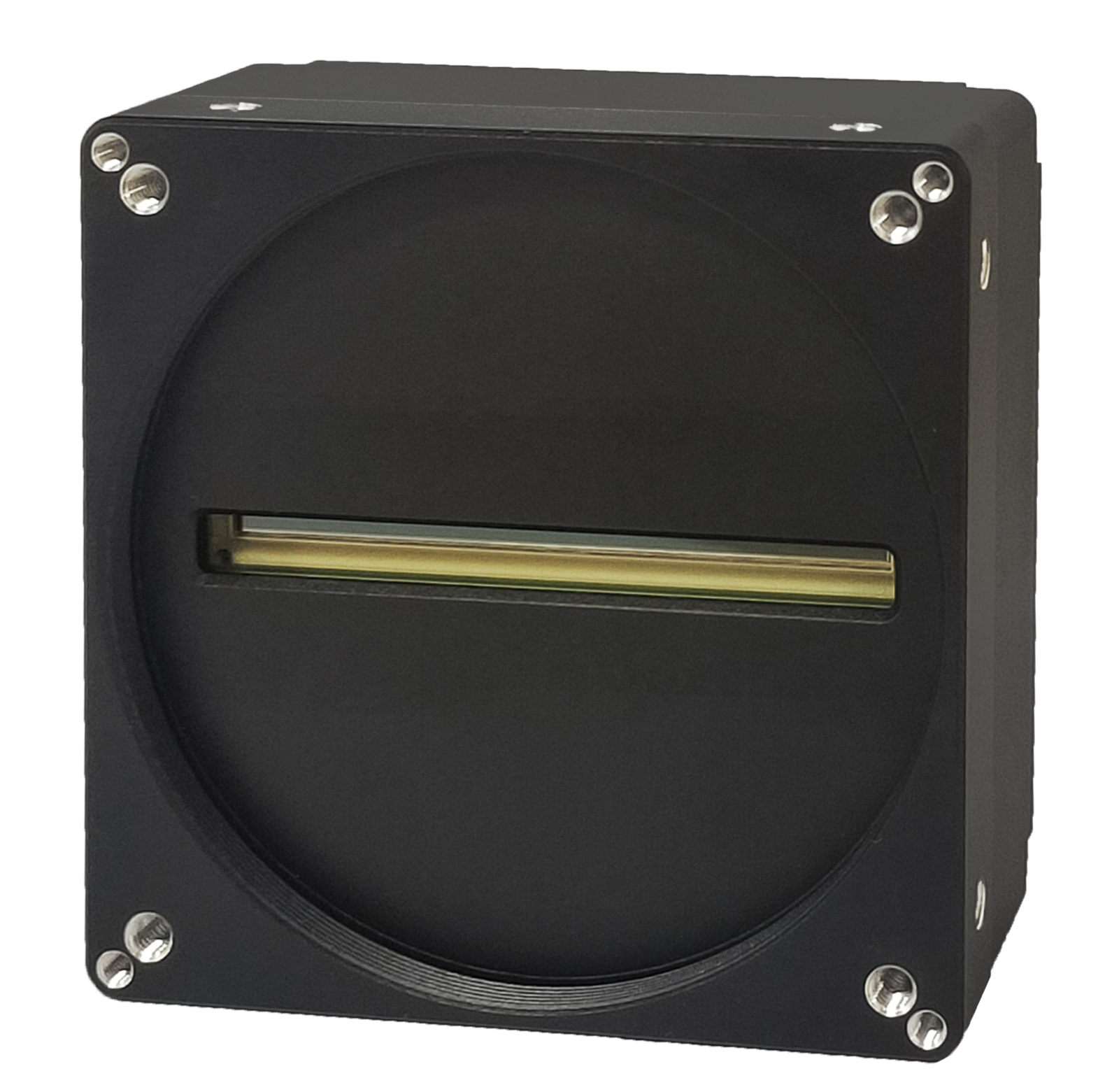

| Sensor | Global Shutter CMOS |
| Image Mode | Mono |
| Optical Size | 57.34 mm |
| Resolution | 8192 * 1 |
| Pixel Size | 7μm |
| Max Line Rate | 15kHz(45kHz with SAccelTM) |
| Bit Depth | 8 bit |
| Dynamic Range | ≥54 dB |
| Data Rate | 368 MB/s |
| Trigger Mode | Free-Run / Line Trigger Control / Frame Trigger Control |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 2μs-1s(Step:0.125μs) |
| Analog Gain | x1/x2/x4/x8/x16/x32 |
| Digital Gain | 0.001~16 |
| Lens Mount | M72 * 0.75 |

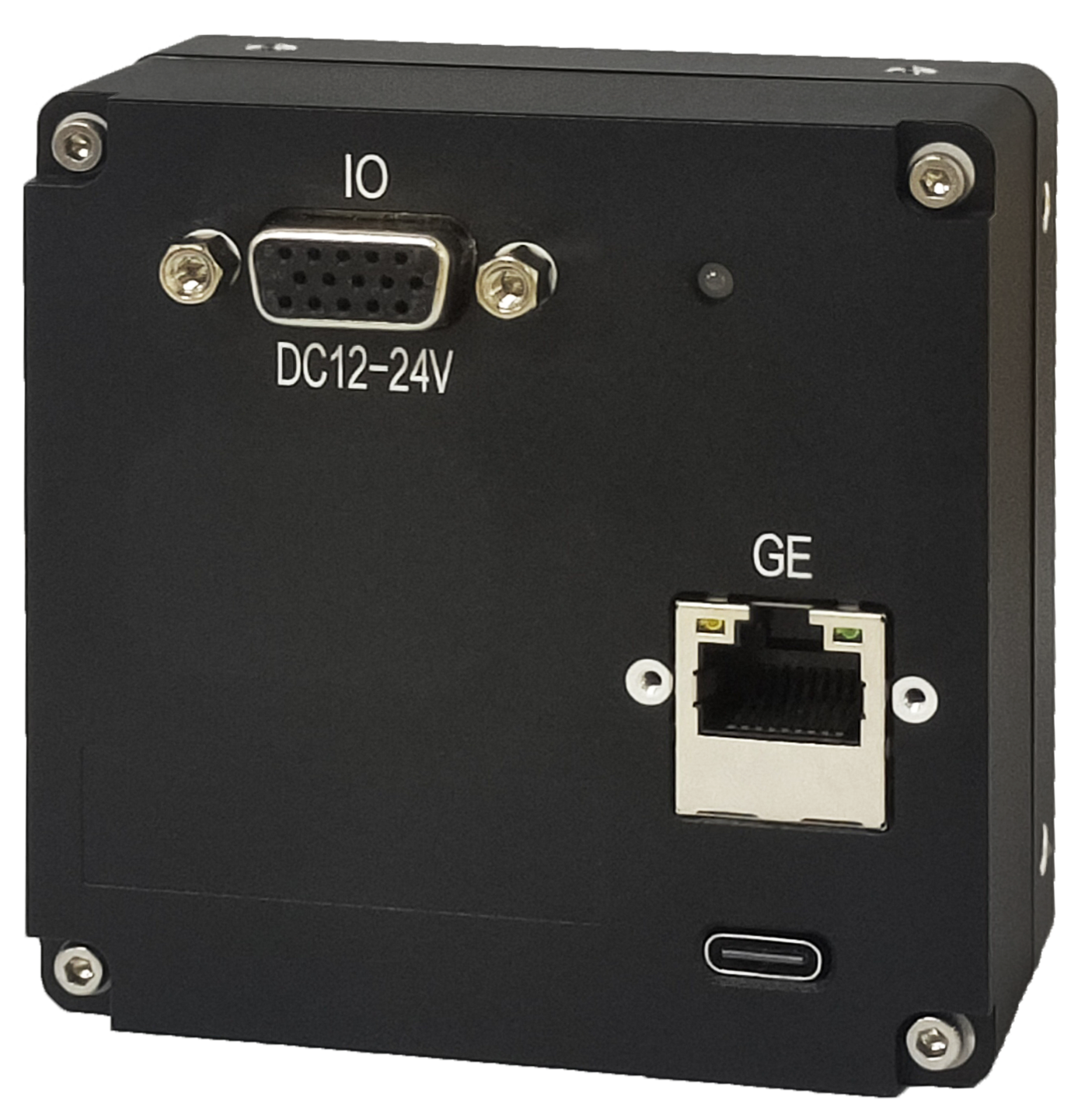

| Data Interface | GigE Vision |
| Power Connector | DB15(Female) |
| Power Supply | DC12-24V(±10%) 1.0A |
| Power Dissipation | 5.0 W |
| Dimensions | 76.0mm(W) x 76.0mm(H) x 40.1mm(D) |
| Operating Temperature | 0-65℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 326.0g |
