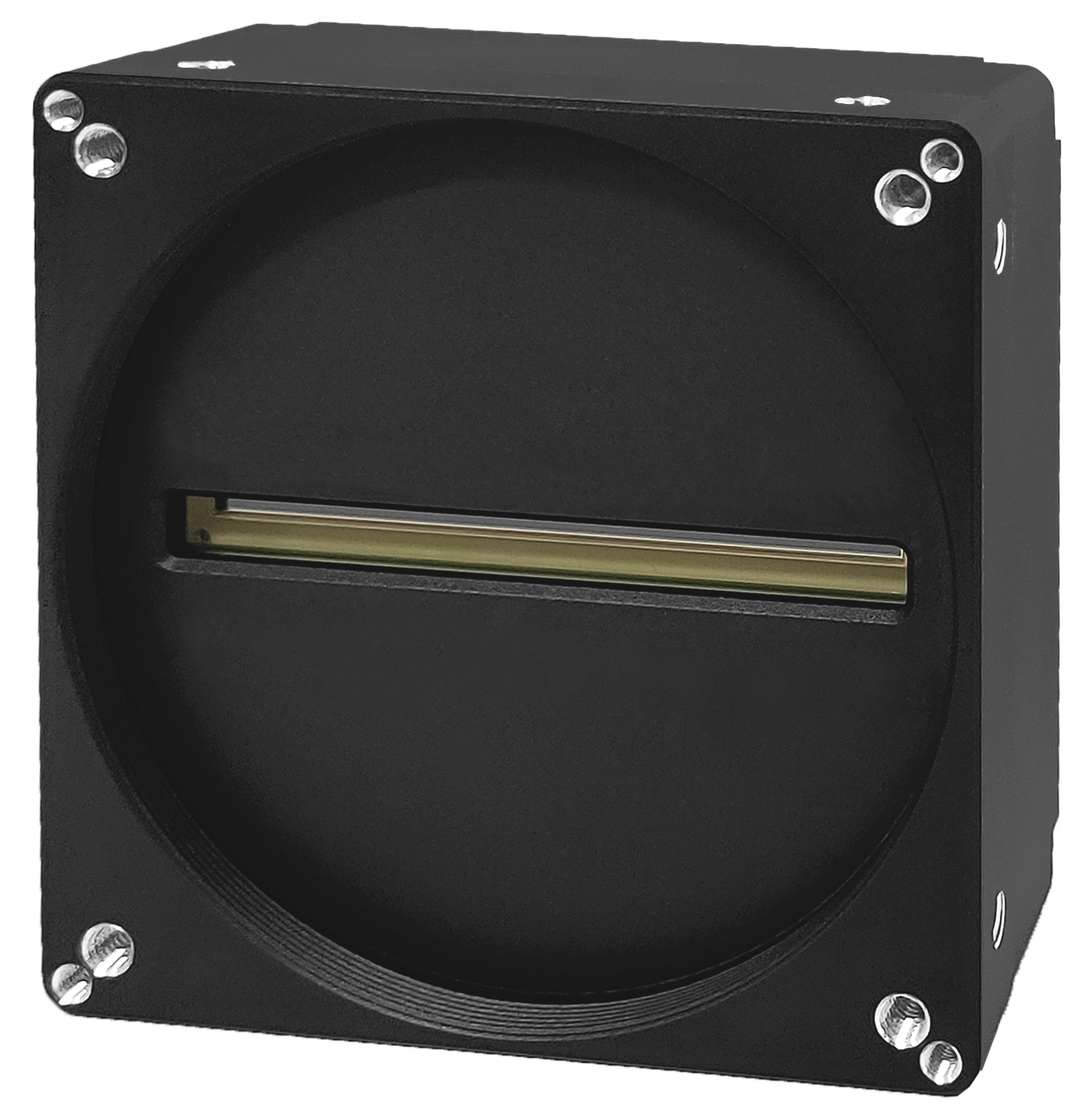

| Model | PA8KCL-80KM |
| Sensor | Global Shutter CMOS |
| Image Mode | Mono |
| Optical Size | 57.34 mm |
| Resolution | 8192 * 1 |
| Pixel Size | 7μm * 7μm |
| Max Line Rate | 80.0kHz@8Tap，40.2kHz@4Tap，20.1kHz@2Tap |
| Bit Depth | 8/10 bit |
| Dynamic Range | ≥69.4 dB |
| Data Rate | 655 MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 2.5μs-11764μs(Step:0.01μs) |
| Analog Gain | 27dB~132dB |
| Digital Gain | 0.01-8.00x |

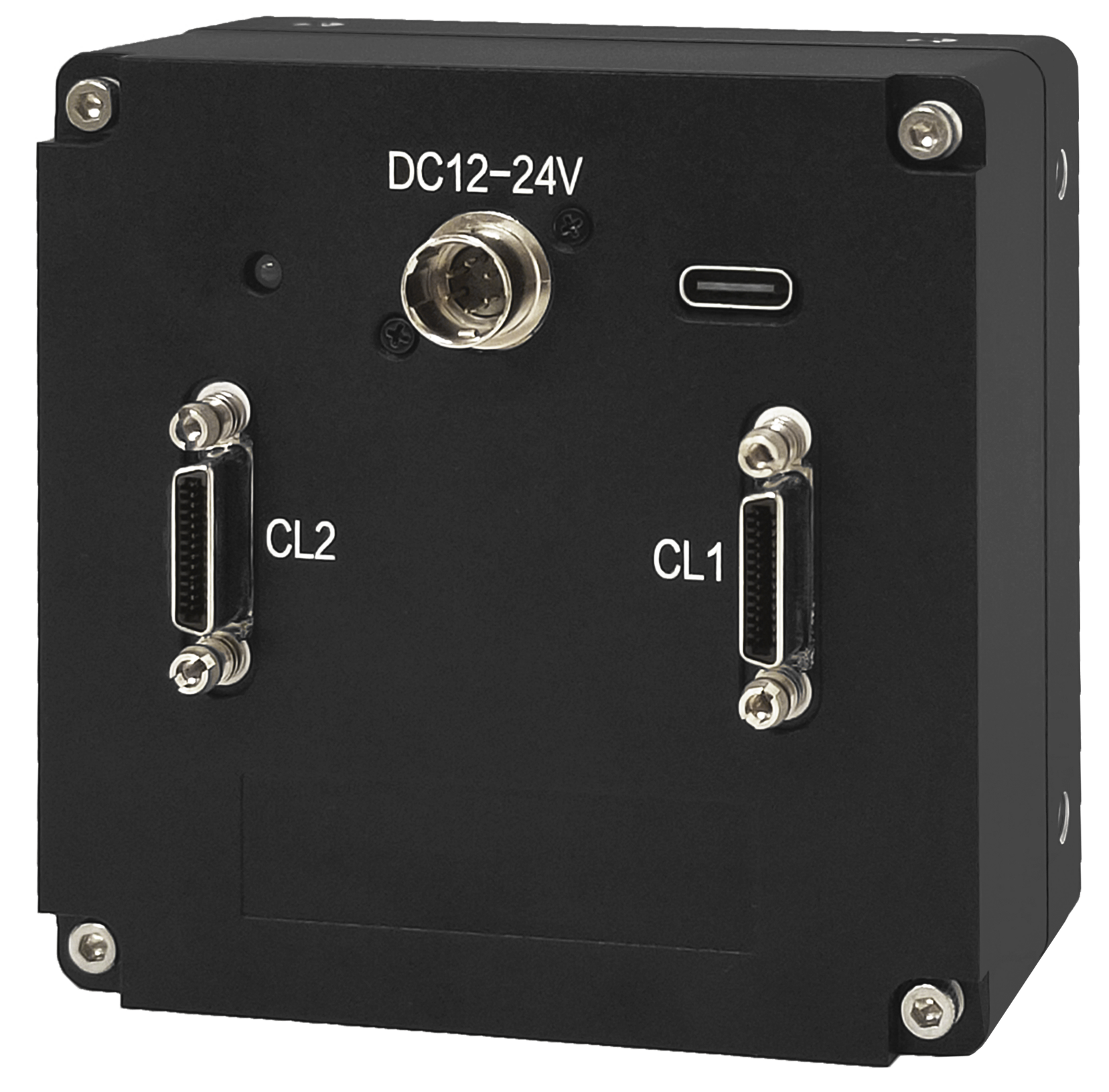

| Data Interface | Camera Link |
| Lens Mount | M72 * 0.75 |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 1.0A |
| Power Dissipation | 6.1 W |
| Dimensions | 76.0mm(W) x 76.0mm(H) x 40.34mm(D) |
| Operating Temperature | 0-65℃ |
| Storage Temperature | -20-75℃ |
