Standards
| Model | PA4KGV-80KM |
| Sensor | Global Shutter CMOS |
| Image Mode | Mono |
| Optical Size | 14.33 mm |
| Resolution | 4096 * 1 |
| Pixel Size | 3.5μm * 3.5μm |
| Max Line Rate | 30kHz(80kHz with SAccel™) |
| Bit Depth | 8 bit |
| Dynamic Range | ≥54 dB |
| Data Rate | 123 MB/s |
| Trigger Mode | Free-Run/ Line Trigger Control / Frame Trigger Control |
| Exposure Control | Pulse Width Control / Program |
| Exposure Time | 2μs-1s(Step: 0.0117μs) |
| Analog Gain | 1/2/4/8x |
| Digital Gain | 0.001-15.999x |

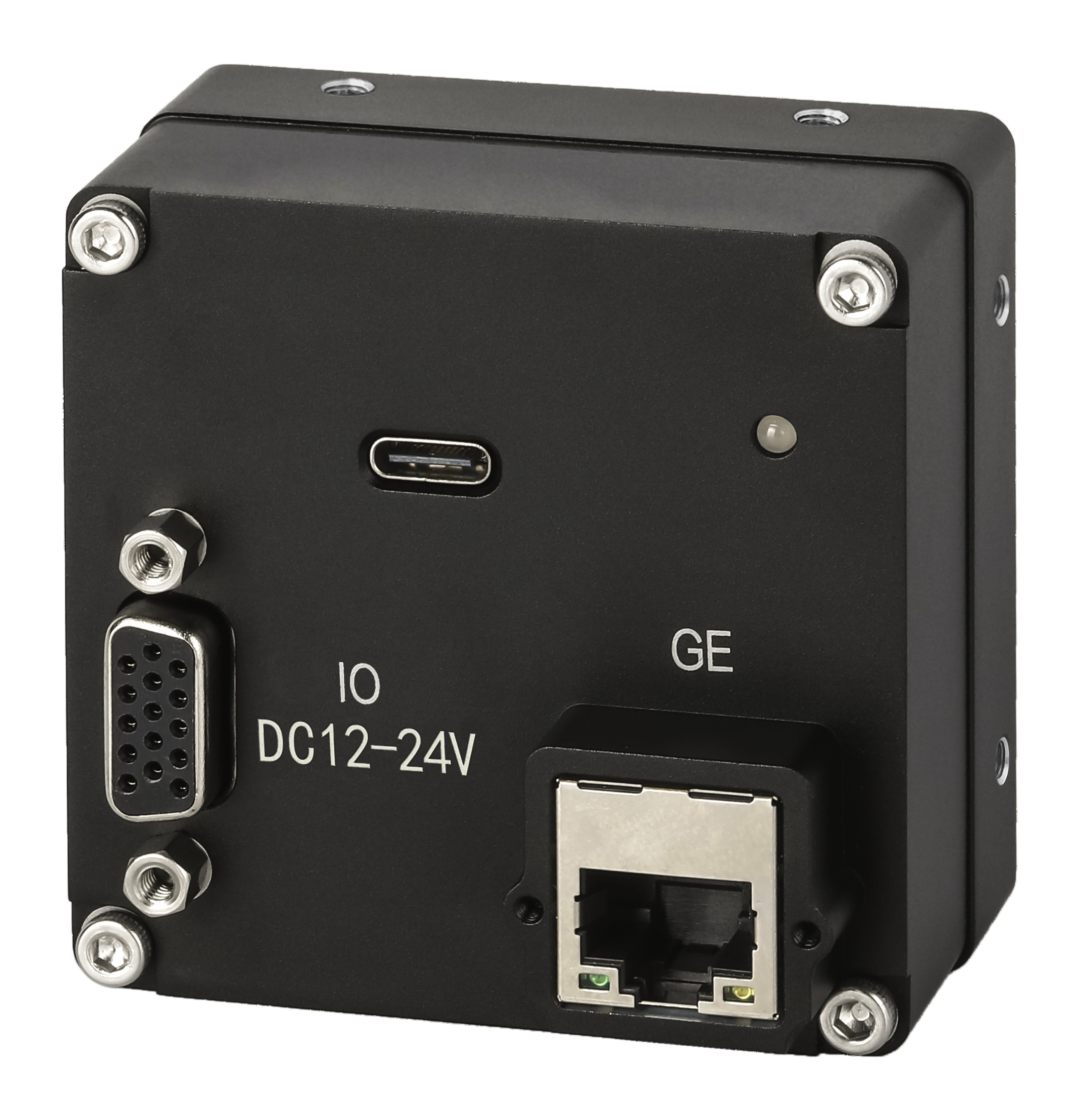

| Data Interface | GigE Vision |

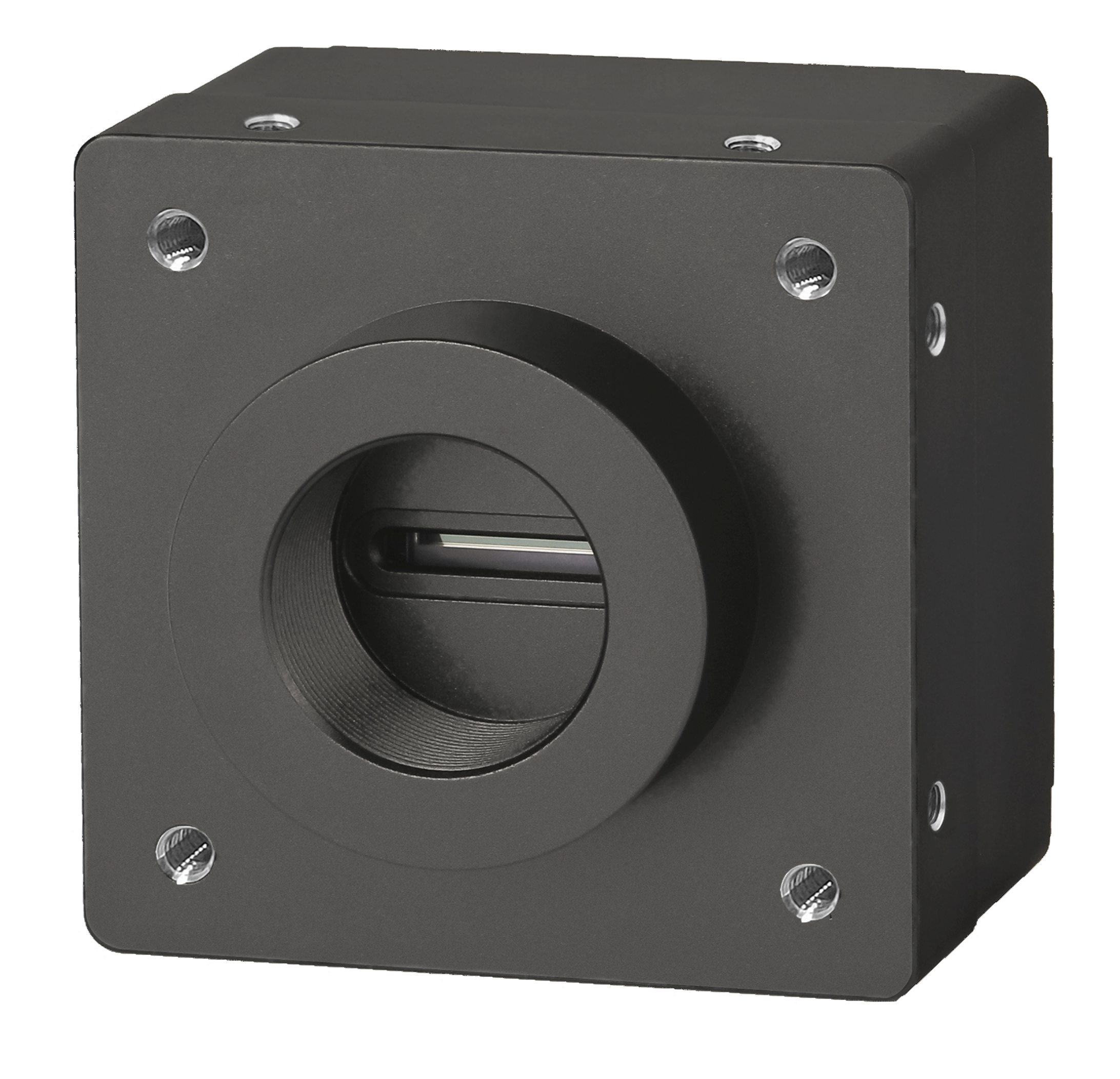

| Lens Mount | C Mount |
| Power Connector | HD15 (Female) |
| Power Supply | DC12-24V (±10%) 1.0A |
| Power Dissipation | 5.6 W |
| Dimensions | 63.0mm(W) x 63.0mm(H) x 56.8mm(D) |
| Operating Temperature | 0-65℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 213.2.0g |
