| Model | PA16KCL-40KM |

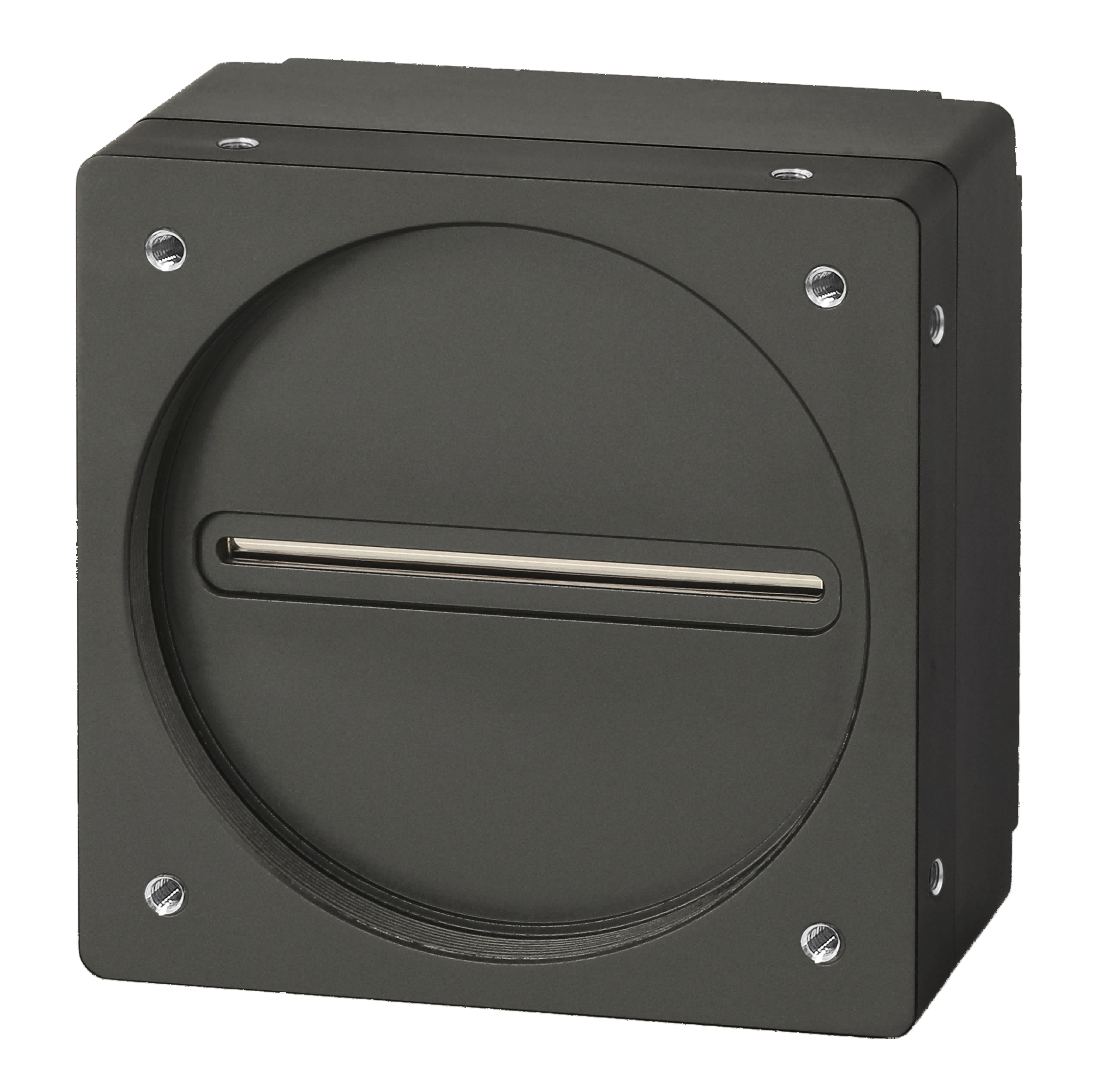

| Description | 16K Monochrome Line Scan Camera |
| Sensor | Global Shutter CMOS |
| Resolution | 16384 x 1 |
| Pixel Size | 3.5um |
| Image Mode | Monochrome |
| Optical Size | 57.34mm |
| Dynamic Range | ≥66.0dB |
| SNR | 41.9dB |
| Line Rate | 51.3kHz@10Tap, 41.1kHz@8Tap, 20.7kHz@4Tap, 10.4kHz@2Tap |
| Data Format | 8/10bit |
| Data Rate | 835MB/s |
| Exposure Control | Timed, Pulse Width Control |
| Exposure Time | 2.5us~10s (Step: 0.1us) |
| Trigger Mode | Free-Run, External Pulse, External PWM |
| Trigger Signal | Camera Link Signal |
| Analog Gain | 30, 126 |
| Digital Gain | 0.01~8 |

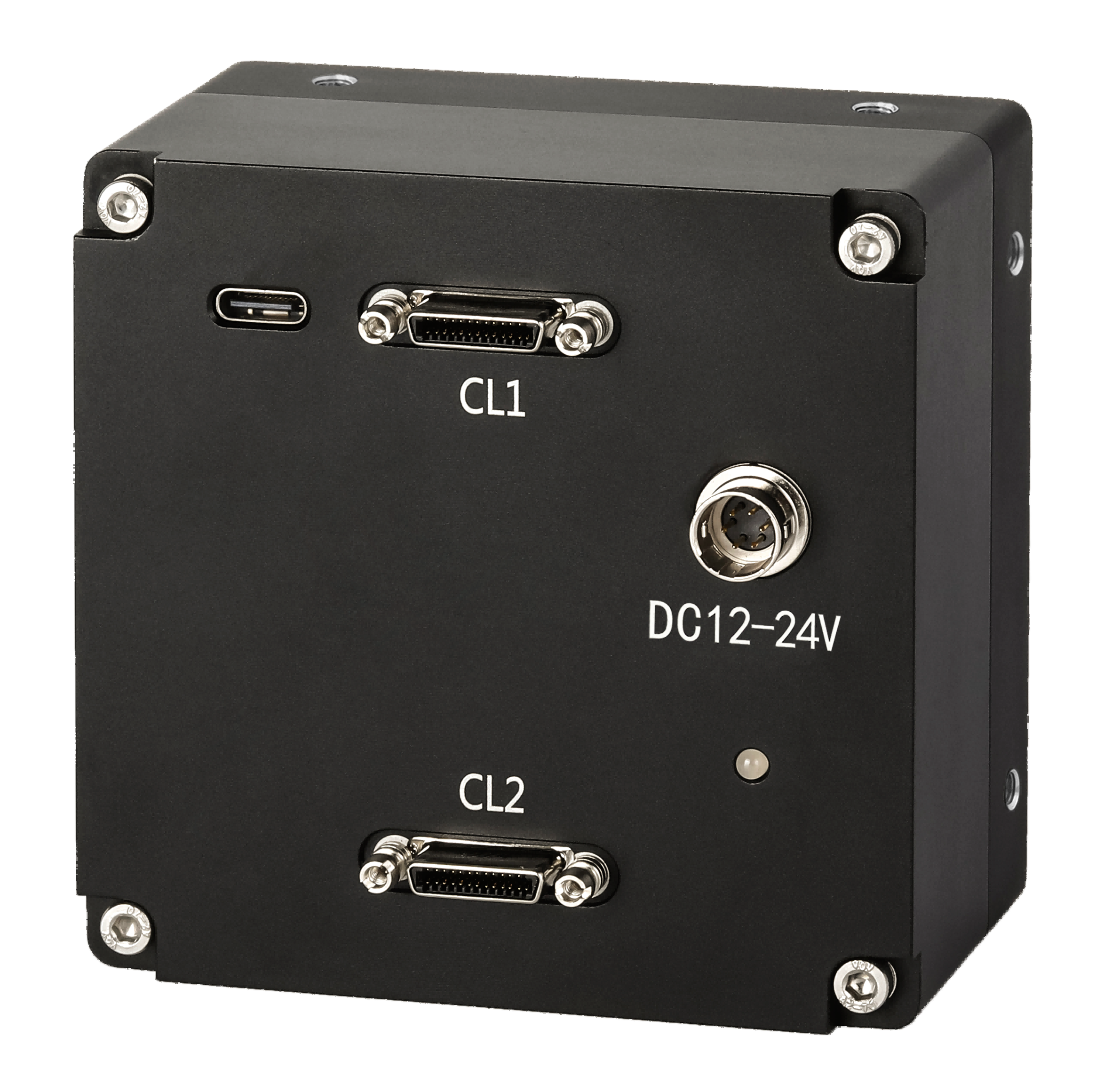

| Data Interface | Camera Link |
| Lens Mount | M72 * 0.75 |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC 12~24V(±10%) 1.0A |
| Power Consumption | 6.9W |
| Mechanical Dimensions | 82.0mm x 82.0mm x 49.7mm |
| Operation Temperature | 0~65℃ |
| Storage Temperature | -20~75℃ |
| Product Weight | 394.2g |
